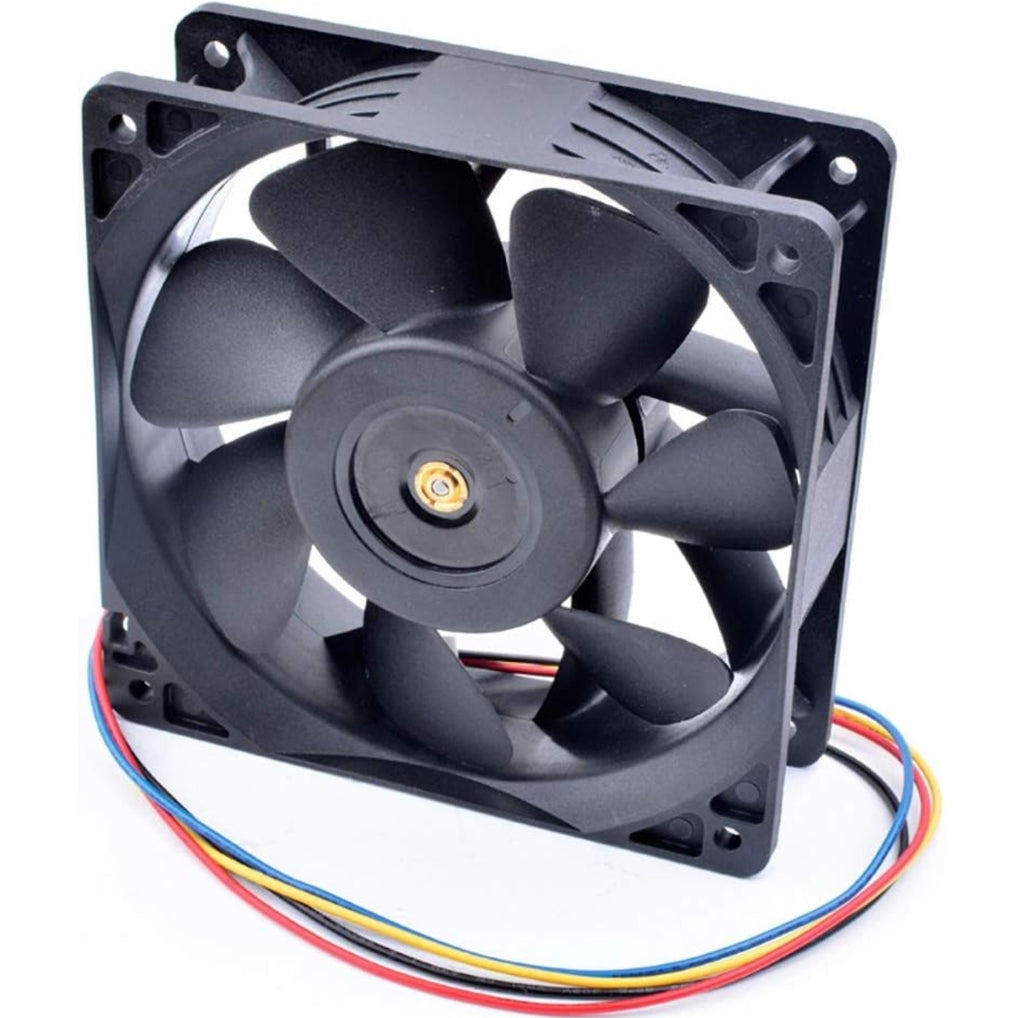

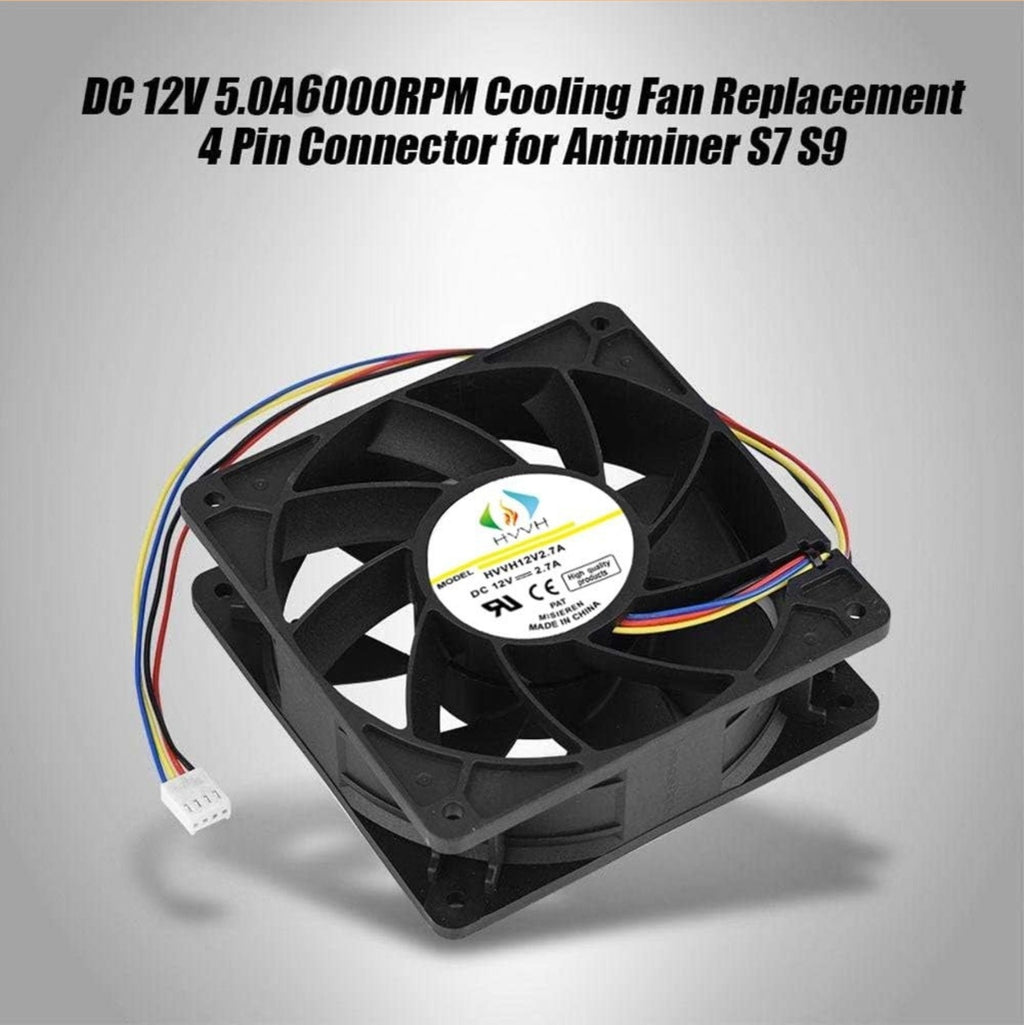

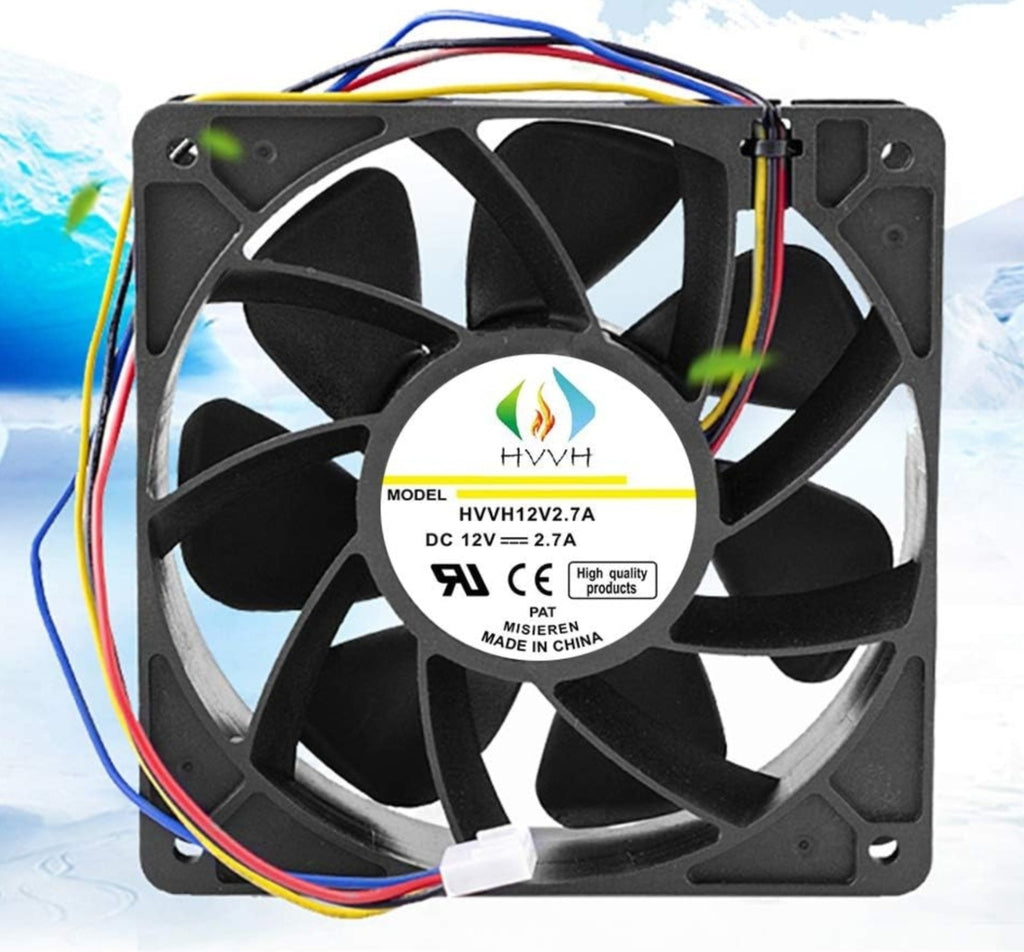

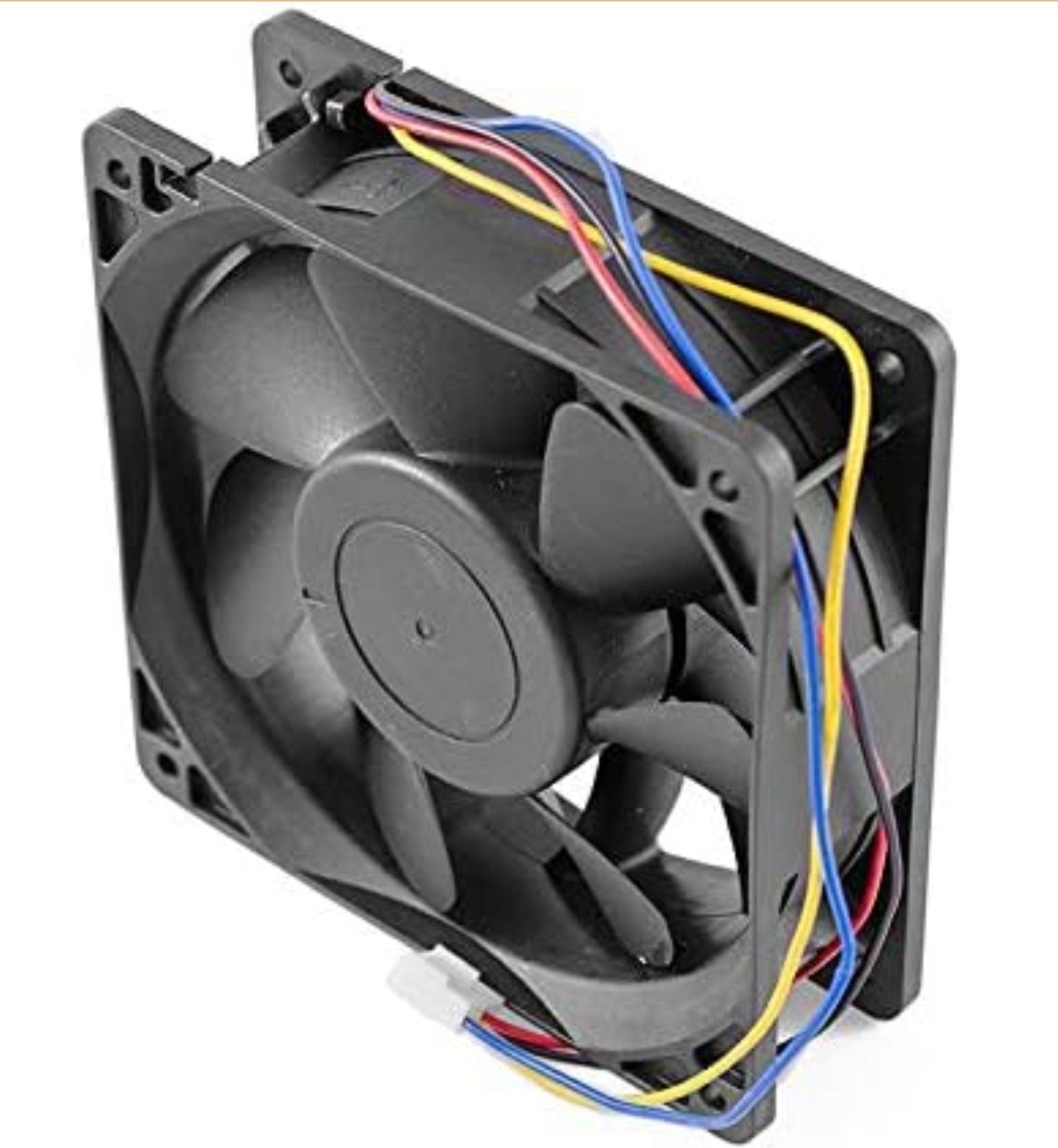

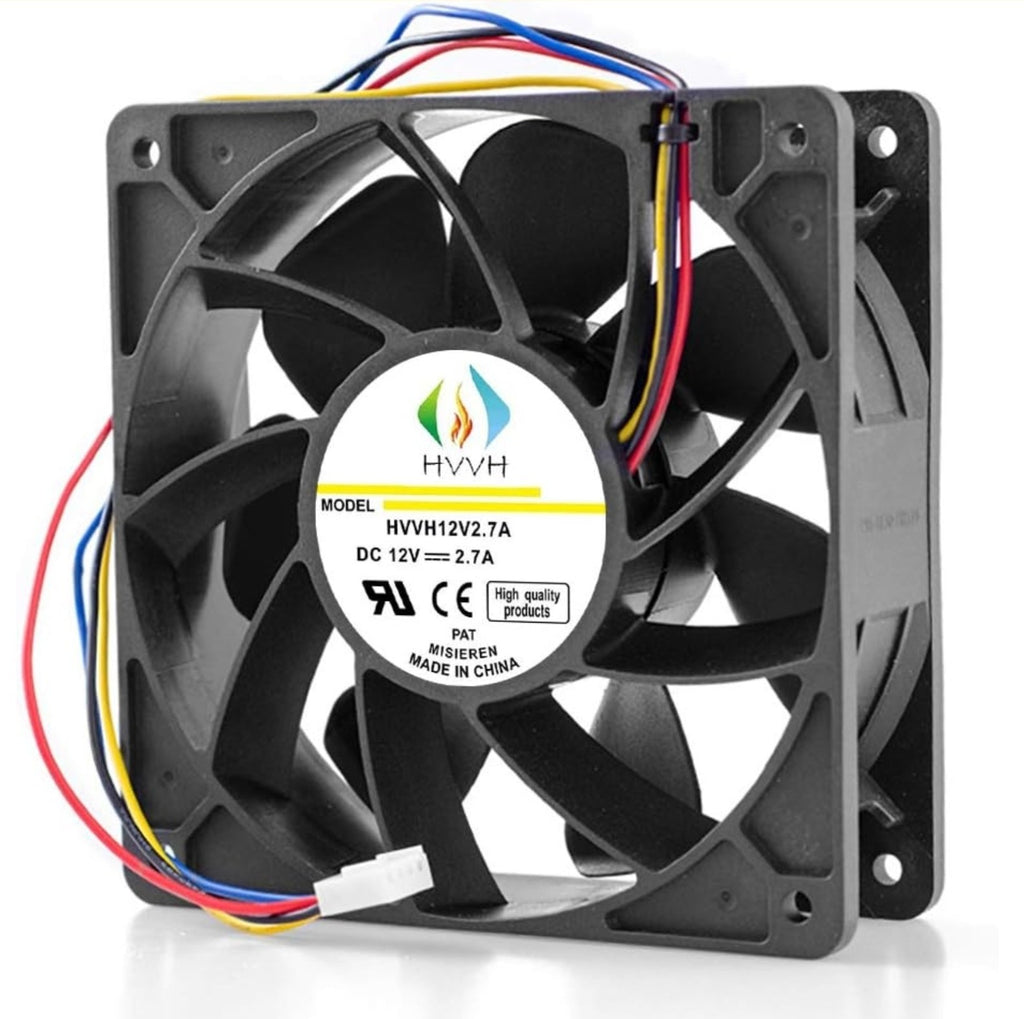

Antminer Bitmain S7 S9 L3 D3 V9 T9 6000RPM Cooling Fan Replacement 12V 4-Pin Fan

The fan's motor is a critical component; all of our motors are sourced from Taiwan, ensuring enhanced stability and extended operational life.

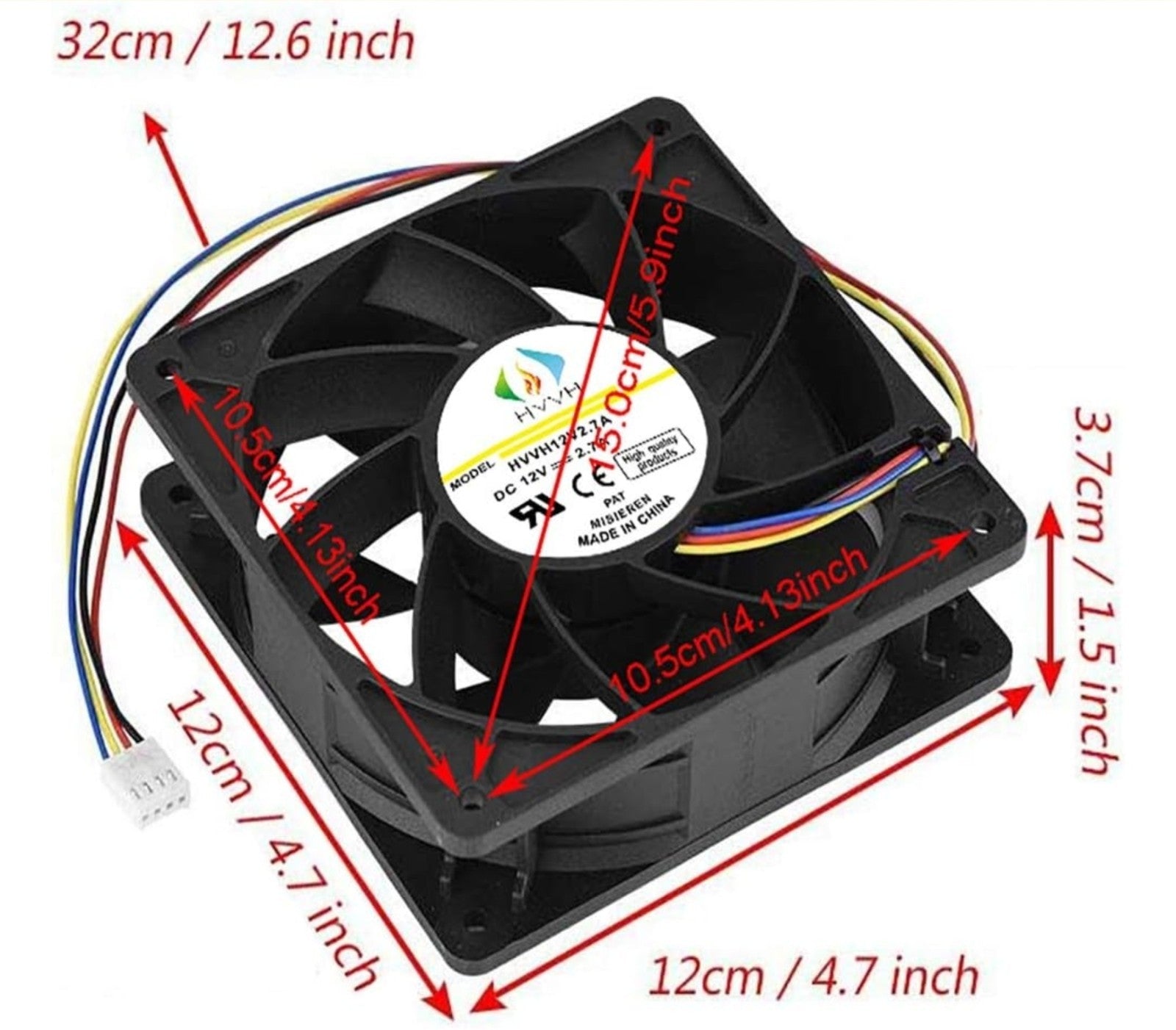

Dimensions: 119mm x 119mm x 38mm, featuring a dual ball bearing design compatible with all 119-120mm fans.

Efficiency: Exceeds 90% (enabling greater power conservation at equivalent airflow).

Compatibility: DC mini 4-Pin.

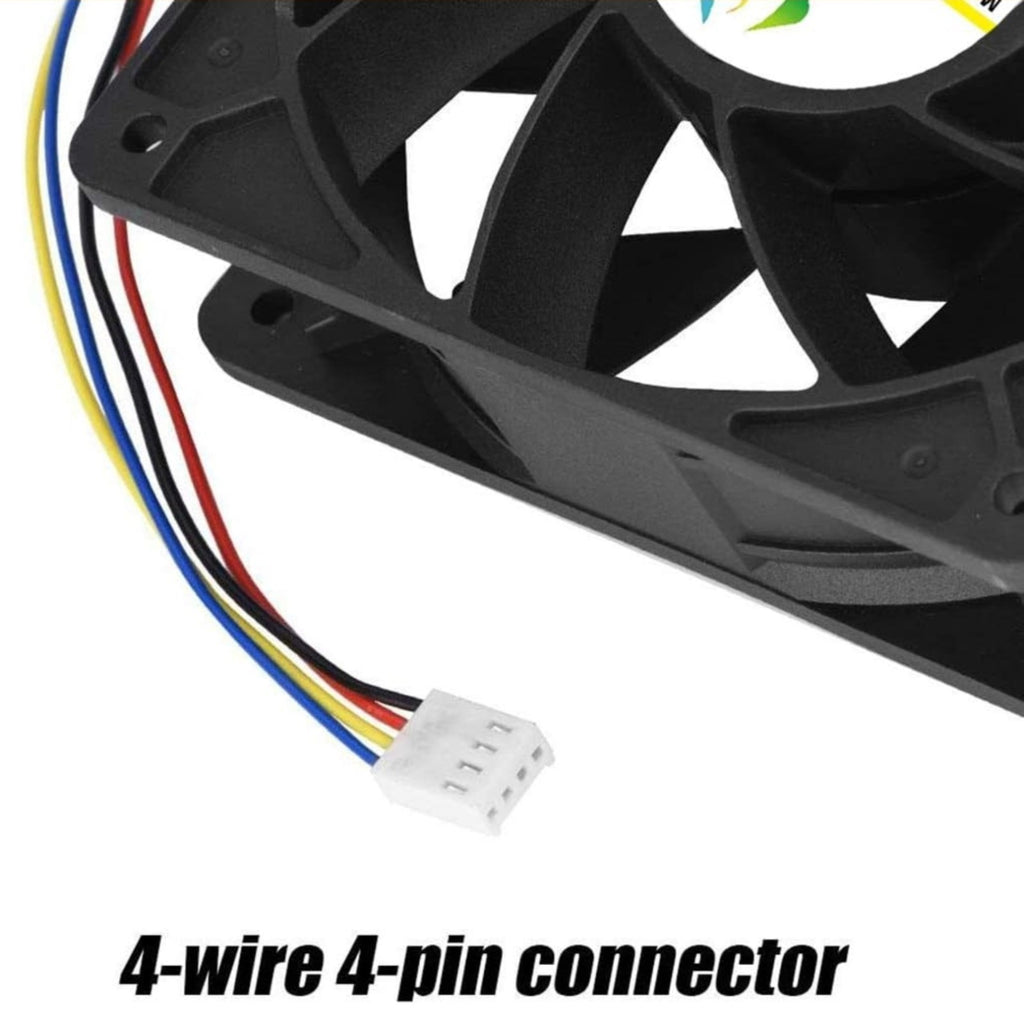

Connector: 4-wire proprietary server dual connector (DC mini 4Pin).

Dimensions: 119 x 119 x 38mm.

Voltage: DC 12V.

Current: 2.7A.

Rotational Speed: 6000 RPM.

Airflow: 210.38 CFM.

Static Pressure: 21.60 mmH2O.

Acoustic Noise: 64 dB-A.

Bearings: High-precision double ball bearings.

Fan Frame Construction: Injection-molded PBT + 30% glass fiber + VO flame retardant.

Blade Construction: Injection-molded PBT + 30% glass fiber + VO flame retardant.

Fan Rotation: Counter-clockwise when viewed from the fan blade.

Operating Temperature Range: -10 degrees Celsius to +70 degrees Celsius.

Storage Temperature Range: -40 degrees Celsius to +70 degrees Celsius.

Power Tolerance: +/- 15% of rated power.

Insulation Resistance: Exceeds 500 megohms.

Dielectric Strength: Leakage current of 0.5mA at 500V for 1 minute.

Service Life: 80,000 hours at an ambient temperature of 25 degrees Celsius (equivalent to over 3 months of continuous 24-hour operation).

Ships within 1 business day
