2pcs FFC FPC Connector Board 10 Pin Double Row Right Angle Pin Header Adapter

FFC/FPC Connectors facilitate the interconnection of flexible cables or flexible printed circuit boards within electronic devices, ensuring dependable electrical connectivity and mechanical stability. These connectors are ideal for applications demanding high flexibility and a compact form factor. Their primary applications span various digital communication products, portable electronic devices, computer peripherals, measurement instrumentation, and automotive electronics, including but not limited to digital cameras, laptops, MP3/MP4/MP5 players, and gaming consoles.

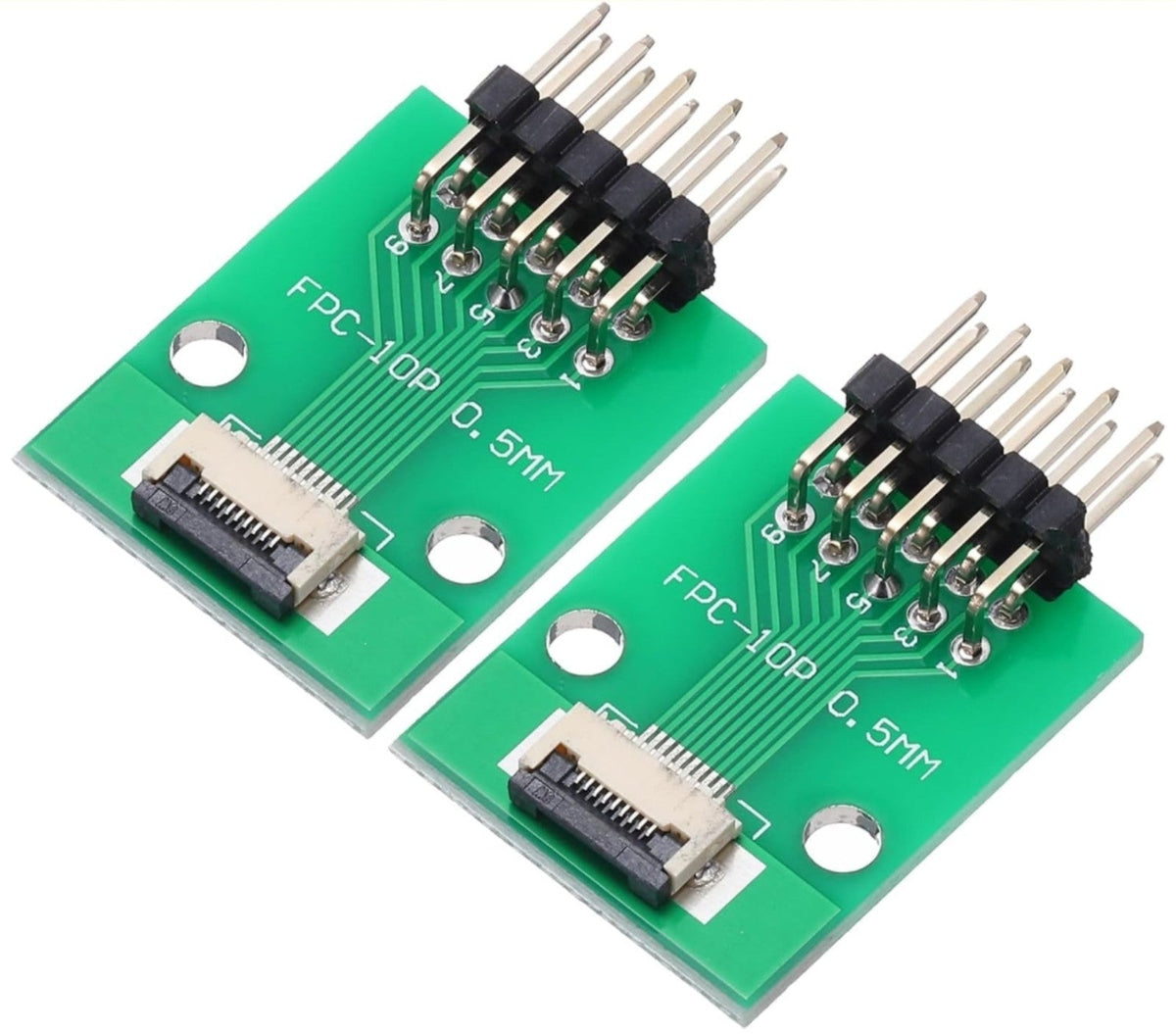

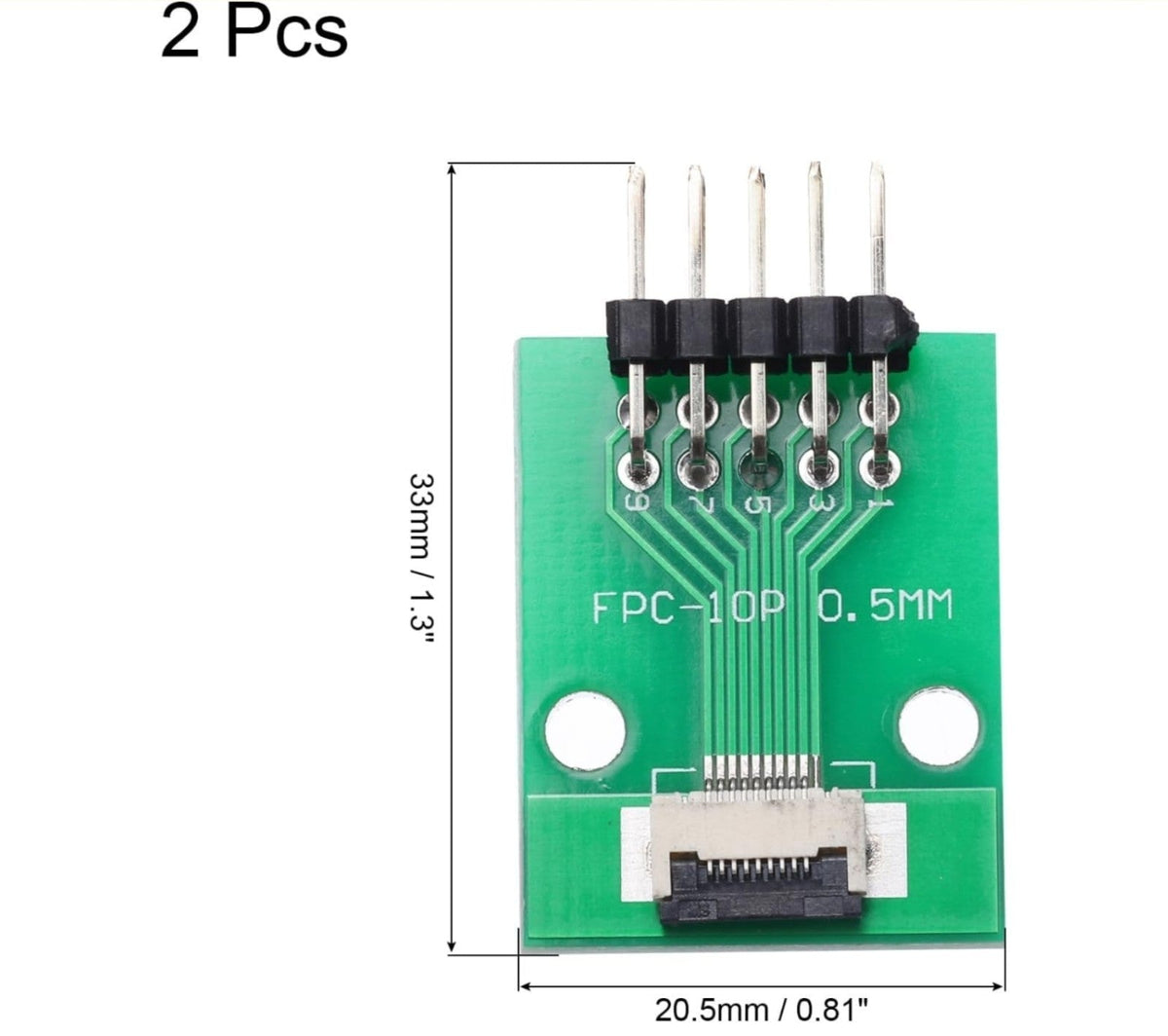

This particular model features a double-sided design with a single flat cable socket. It is designed for PCB support and has a pin count of 10 pins. The FPC socket side pitch is 0.5mm, while the FPC back side pitch is 1.0mm. The DIP pitch measures 2.54mm, and the overall dimensions are 33x20mm (Length*Width).

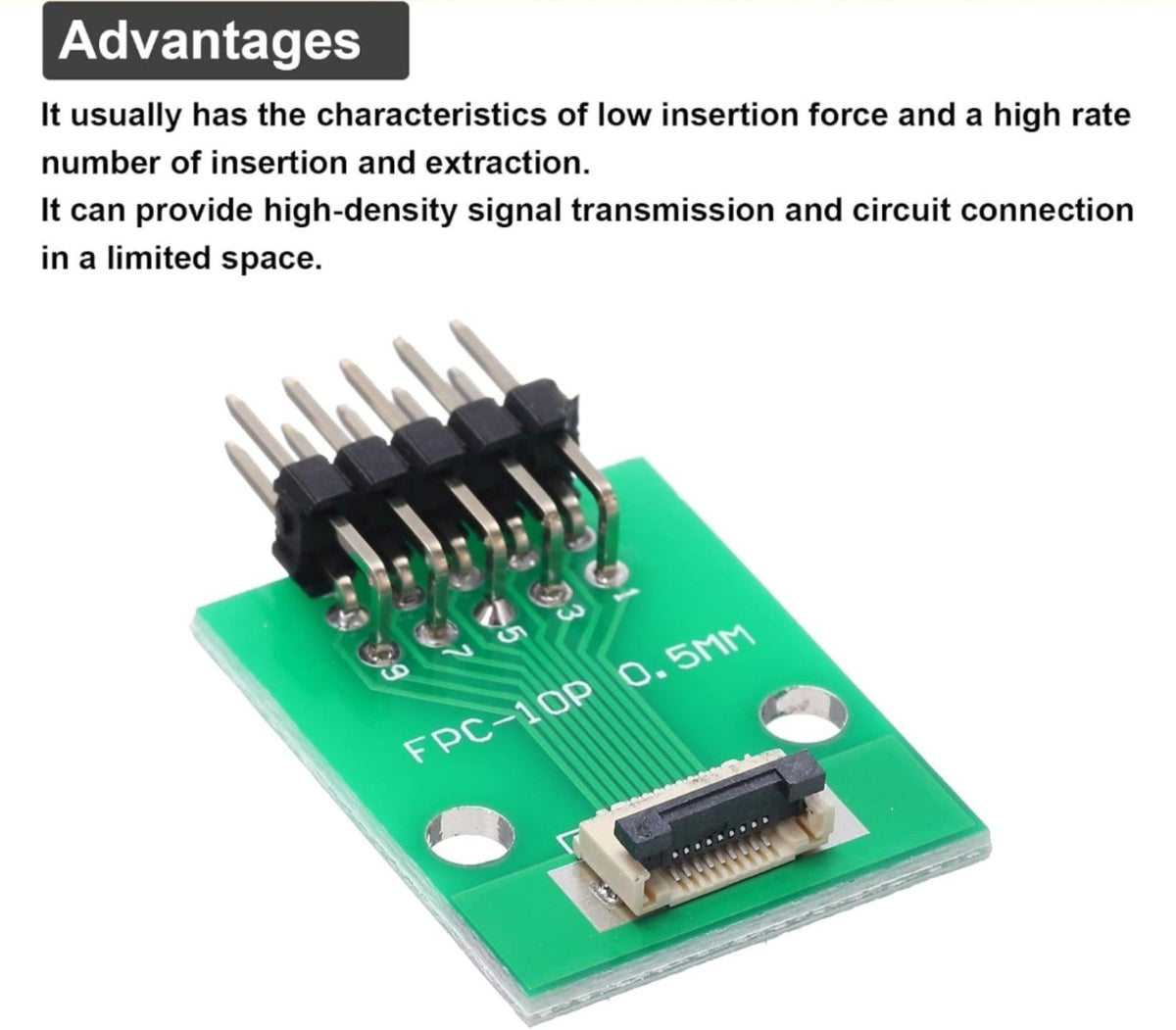

Key characteristics include a typically low insertion force and a high number of insertion and extraction cycles. Furthermore, these connectors enable high-density signal transmission and circuit connections within confined spaces.

Installation involves the following steps: 1. Elevate the black interface. 2. Insert your flat cable (not included). 3. Conduct a test to confirm proper installation.

Please note that all provided dimensions are manually measured, and a tolerance of +/-0.1 inches should be anticipated.

Ships within one business day.
